Can you wire a resistor backwards?
Mia Horton .
Subsequently, one may also ask, how do you know the direction of a resistor?

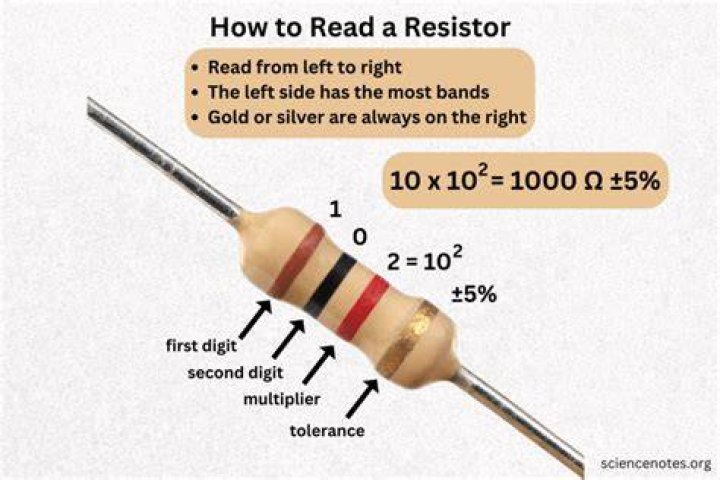

Always read resistors from left to right. - Resistors never start with a metallic band on the left. If you have a resistor with a gold or silver band on one end, you have a 5% or 10% tolerance resistor. Position the resistor with this band on the right side and again read your resistor from left to right.
Beside above, do resistors have a positive and negative side? Resistors are circuit elements that resist the flow of current. Resistors don't care which leg is connected to positive or negative. The + means where the positive or red probe of the volt meter is to be placed in order to get a positive reading. This is called the "positive charge" flow sign convention.
Accordingly, does a resistor work both ways?
If I understand your question, then yes - resistors are reversible, in the sense that they can be connected to the circuit in either direction. Resistors are not like diodes or capacitors. They do not have a polarity. The conduct (or resist) current equally in both directions of current flow.
Is wire a resistor?
A wire in real life, unless it is a superconductor, is a resistor because it has a non-zero value of resistance. However, it has a considerably less resistance than most of the other components of the circuit, so one often ignores that in ordinary cases, but not in all.
Related Question Answers
Does it matter which way you wire a resistor?
Resistors are blind to the polarity in a circuit. Thus, you don't have to worry about installing them backwards. Current can pass equally through a resistor in either direction. In schematic diagrams, a resistor is represented by a jagged line, like the one shown in the margin.Can you wire resistors in series?
You can place more than two resistors in series if you want. You just keep adding up all the resistances to get the total resistance value. For example, if you need 1,800 Ω of resistance, you could use a 1 kΩ resistor and eight 100 Ω resistors in series. Here, the two circuits have identical resistances.Where does the resistor go on an LED?
You have to connect a resistor in order to set the current that your LED is expecting. The resistor doesn't need to be on the anode side, but it needs to be there (unless the voltage of the power supply is equal to or less than the voltage drop of the LED.)Can you heat shrink a resistor?
Larger resistors (over 1 watt) I never heat shrink over, because there's no benefit. The shrink doesn't get small enough to cover and help hold the connection. You can heat shrink over the whole thing, especially if they're small.How do you wire a resistor to a coil?
Connect a wire from the coil positive terminal to one side of the ballast resistor. Connect 12 volts to the other terminal of the resistor. 3. Install the high voltage coil wire.What is the color code for a 100k ohm resistor?
100k / 100k ohm Resistor Colour Code
| Value | 100 kΩ |
|---|---|
| Type | 4 Band Colour Code System |
| Colour Code | Brown, Black, Yellow, Gold |
| Multiplier | Yellow, 10000 |
| Tolerance | Gold Band ±5% |
What resistor do I need for LED?
Basics: Picking Resistors for LEDs
| Power Supply Voltage | LED Color | Resistor (rounded) |
|---|---|---|
| 5 V | Red, Yellow, or Yellow-Green | 150 Ω |
| 5 V | Red, Yellow, or Yellow-Green | 56 Ω |
| 9 V | Red, Yellow, or Yellow-Green | 75 Ω |
| 9 V | Blue, Green, White, or UV | 100 Ω |
What color is a 10k resistor?
4 band resistor color code for 10k resistorThe first band is brown as it stands for 1. The second band is black which means 0. The third band - multiplier x 1 kΩ - is orange.What color is a 1 ohm resistor?
So here we go: 1 is brown, zero is black and -1 is gold. So there you go: Brown, Black, Gold = 1.0 ohm.How can you tell the value of a resistor using color code?
Calculating Resistor ValuesFor example, a resistor has the following coloured markings; Yellow Violet Red = 4 7 2 = 4 7 x 102 = 4700Ω or 4k7 Ohm. The fourth and fifth bands are used to determine the percentage tolerance of the resistor.What does a resistor look like in a circuit diagram?
The most common schematic symbol for a resistor is a zig-zag line: Resistor values in ohms are usually shown as an adjacent number, and if several resistors are present in a circuit, they will be labeled with a unique identifier number such as R1, R2, R3, etc.What are the color codes of resistors?
Standard Resistor Values and ColorComponents and wires are coded with colors to identify their value and function. The colors brown, red, green, blue, and violet are used as tolerance codes on 5-band resistors only. All 5-band resistors use a colored tolerance band.How do you remember resistor colors?
Here's one mnemonic "Bright Boys Rave Over Young Girls But Veto Getting Wed. Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Grey, White <=> 0, 1, 2, 3, 4, 5, 6, 7, 8, 9. Best method to memorize is - B.B. Roy of Great Britain Veto getting wed.What is the tolerance of a resistor?
Tolerance is the percentage of error in the resistor's resistance, or how much more or less you can expect a resistor's actual measured resistance to be from its stated resistance. A gold tolerance band is 5% tolerance, silver is 10%, and no band at all would mean a 20% tolerance.Does a resistor reduce voltage?
Voltage varies directly with current. If I add in a resistor to a circuit, the voltage decreases. If you have a resistor in a circuit, with a current flowing through it, there will be a voltage dropped across the resistor (as given by Ohm's law).When should I use a resistor?
The main function of resistors in a circuit is to control the flow of current to other components. Take an LED (light) for example. If too much current flows through an LED it is destroyed. So a resistor is used to limit the current.What is the symbol for a resistor?
The Ohm is often represented by the omega symbol: Ω. The symbol for resistance is a zigzag line as shown below. The letter "R" is used in equations.What are the 4 types of resistors?
Different Types of Resistors – Fixed, Variable, Linear & Non-Linear Resistors & Applications- Carbon Composition Resistors.
- Wire wound Resistors.
- Thin Film Resistors.
- Carbon Film Resistors.
- Metal Film Resistors.
- Thick Film Resistors.
- Metal Oxide Resistors.
- Cermet Oxide Resistors (Network Resistors)
