How deep do foundations need to be for a garden wall?
Owen Barnes news
Basic FoundationThe trench is deep enough to hold a 4- to 8-inch layer of compacted material plus enough room for at least a portion of the first row of the garden wall.
.
Also question is, do I need foundations for a garden wall?

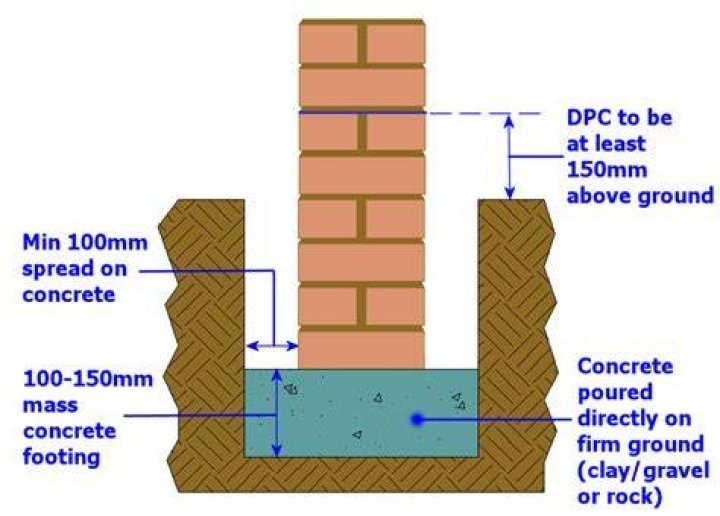

The foundations need to be at least 3 times the width of a half brick wall (i.e. 34 cm/13.5 inch) or at least twice the width of a one brick wall (i.e. 45 cm/18 inch). For a light garden wall, a trench 30 cm (12 inch) deep should be sufficient if the soil is firm and well drained.
Furthermore, how deep do you dig footings for a wall? A concrete footing should be 100mm deep by 300mm wide if the footing is for a free standing wall. The footing should be increased to 150mm deep and 450mm wide if the wall being built is a retaining wall.
Furthermore, how do you build a foundation for a garden wall?
How to build a small garden wall
- Dig the foundations. Dig a trench 200mm deep and 300mm wide, where the wall will be.
- Prepare the foundations. Infill the trench with a 100mm layer of compacted hardcore and then make up the rest with concrete.
- Build one course at a time.
- Laid in a stretcher bond.
- Top the wall with matching coping.
How deep should footings be for a dwarf wall?
450mm
Related Question Answers
How do you reinforce a garden wall?
Use rebar that is 12 inches taller than the wall is high. Place one of the rebar poles in front of the wall so that it is flush with the brick. Hammer the rebar into the ground until the rebar is level with the top of the retaining wall. Place one piece of rebar every foot.Do you need a DPC in a garden wall?
Most brickies who have quoted say that a DPC is not necessary for a garden wall, although one recommended a DPC in the form of 2 rows of engineering bricks.How do you build a low garden wall?
How to build a small garden wall- Dig the foundations. Dig a trench 200mm deep and 300mm wide, where the wall will be.
- Prepare the foundations. Infill the trench with a 100mm layer of compacted hardcore and then make up the rest with concrete.
- Build one course at a time.
- Laid in a stretcher bond.
- Top the wall with matching coping.
How thick should a garden wall be?
The basic rules governing the building of a garden retaining walls are simple. Firstly the foundation you place should be a minimum of 150mm (6 inches) thick.How do you build a brick wall from scratch?
There are 11 steps in this guide to building a brick wall.- Step 1: Start your brick wall at the corners. Firstly, lay out the bricks at both ends of your wall where the pillars will start.
- Step 2: Mix the mortar.
- Step 3: Lay the first course of bedding mortar.
- Step 4: Create the brick pillars.
- Step 5: Cutting bricks.
How many cubic yards are in a foundation?
From your note that you are pouring a slab that is 20' by 20' and 6" thick and three footings that are 20' by 12" by 12". 20 20 1/2 = 200 cubic feet. /27 = 7.4 cubic yards. /27 = 0.74 cubic yards.How high can you build a brick garden wall?
Introduction. A garden wall in brick or stone may be more expensive than a fence, but it'll weather attractively and last a lifetime. You'll need planning permission for any wall over 1 metre high on the edge of a public highway, and for any free-standing wall over 2 metres high.How do you lay bricks on soil?
Spread a layer of sand or stone dust on the bricks and sweep it over your stone floor to fill in the cracks between the bricks. If you are using stone dust, water it to cause it to harden and hold the bricks more firmly in place.How do you build a wooden garden wall?
How to Build a Wood Retaining Wall- Step 1: Remove Soil and Dig a Trench.
- Step 2: Prepare the Timbers.
- Step 3: Drive Rebar Stakes.
- Step 4: Drill Holes for Spikes.
- Step 5: Lay the Drainpipe.
- Step 6: Put the Deadmen and Tiebacks in Place.
- Step 7: Lay the Remaining Courses.
- Step 8: Fill With Topsoil.
How do you lay a foundation?
How Does a Foundation Go In?- Pick a site, making sure to investigate the conditions of the soil.
- Have your lot surveyed.
- Start digging.
- Install the footings.
- Seal the footings to protect them from moisture.
- Once the concrete has cured, use concrete block to create the stem walls if you're building a basement.
How deep should footings be for a 6 foot wall?
A concrete footing should be 100mm deep by 300mm wide if the footing is for a free standing wall. The footing should be increased to 150mm deep and 450mm wide if the wall being built is a retaining wall.What is the standard footing size?
You can look up the recommended footing size, based on the size and type of house and the bearing capacity of the soil (see the table above). As you can see, heavy houses on weak soil need footings 2 feet wide or more. But the lightest buildings on the strongest soil require footings as narrow as 7 or 8 inches.What is the minimum depth of foundation?
1.50m
What is the best retaining wall material?
Retaining Wall Materials Comparison Chart
| TYPE OF MATERIAL | PROS |
|---|---|
| Poured Concrete | Stronger than a block wall Variety of design options |
| Brick | Strong and durable |
| Wood | Accessible materials Fairly simple installation |
| Dry Stone/Boulder | The most natural solution to grade change |
How deep and wide do footings need to be?
Depth: Footings should extend to a minimum depth of 12 inches below previously undisturbed soil. Footings also must extend at least 12 inches below the frost line (the depth to which the ground freezes in winter) or must be frost-protected. Width: Footings should have a minimum width of 12 inches.How deep should foundations be for a brick wall?
Footing dimensions
| Type of wall | Wall height | Depth of concrete |
|---|---|---|
| Single-skin | Up to 1m | 300mm |
| Double-skin | Up to 1m | 150mm |
| Double-skin | Over 1m, up to 2m | 375-450mm |
| Retaining wall | Up to 1m | 150mm-300mm |
