How do you wire truck brakes on a trailer?
Rachel Hernandez general

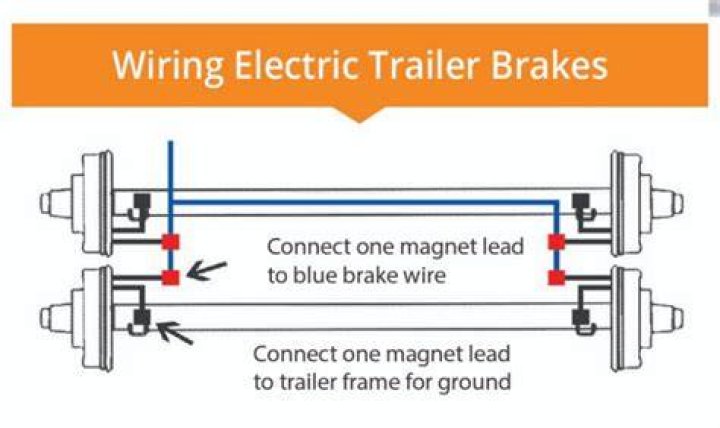

If the trailer wiring is running down the left side of the trailer, then we splice the left side brake assemblies into the main electric brake power wire coming from the 7-way connector. We then run a jumper wire from the electric brake power wire to the right side brake assemblies (see photo).
.
Likewise, people ask, how do you put brakes on a trailer?
Installing Electric Brakes on Your Trailer
- First, you must remove your existing hub.
- Next, Find the CORRECT backing plate.
- Install the lock washers under the nuts and tighten.
- Make sure the outer bearing is greased, and put in the hub, then the washer, and then the nut.
- Insert the cotter pin.
Additionally, can you pull a trailer with electric brakes without a controller? Electric trailer brakes do not work without a brake controller. If your trailer is equipped with electric brakes, you will need a brake controller to tow. However, some trailers are equipped with surge brakes. These are a hydraulic braking system that uses the trailer's own weight and momentum to actuate the brakes.
Likewise, people ask, how does a brake controller know if a trailer is connected?
When a trailer with electric brakes is connected to a vehicle that has a brake controller that brake controller is sensing the draw of the brake magnets by sending back a small amount of voltage on the blue wire.
Why are my trailer brakes not working?
There are a number of reasons why the brakes on your trailer may not be working. Next, check the ground wire on the vehicle and trailer connectors, trailer brake magnets and the brake controller itself. If there is a bad ground connection the trailer brakes will not work. Next, check the brake controller wiring.
Related Question Answers
Which axle should trailer brakes be on?
When only one brake axle is being installed on a tandem axle trailer, the brakes should be on the rear axle for maximum system performance. Rotational torque applied to axles during braking shifts the equalizer and applies more weight to rear axle.Do you need electric brakes to tow a camper trailer?
One of the most important parts of towing a caravan is having an electric brake controller. All trailers of 750kgs GTM or more must be fitted with brakes. Electric brakes are the most common, and require a brake controller, with appropriate connections to the trailer, to be fitted in the tow vehicle.How do you rebuild electric trailer brakes?
How to Repair Electric Trailer Brakes- Open the trailer connector.
- Locate the wire that controls the electric brakes.
- Plug the trailer connector into the tow vehicle connector and have an assistant press the brake pedal.
- Attach a 12-volt test light's ground clip to a bare metal portion of the trailer's frame.
How do trailer brakes work electrically?
How does electricity make this brake work? The magnet in the backing plate has 2 conductor wires which tap directly into the trailer wiring. The magnet is attracted to the drum face. When it contacts this area, the friction causes it to rotate, which moves the actuating arm, and pushes the shoes out against the drum.Does polarity matter on electric trailer brakes?
Are Trailer Brake Magnets Polarity Sensitive. Trailer electric brake magnets are non-polarized. When installing an electric brake assembly, like the Electric Trailer Brake Assembly, Left Hand # AKEBRK-35L, either wire can be used for the brake signal and the ground wire, it will not matter which wire is used for which.How do you check trailer brake output?
Testing the brake controller is fairly easy. Sever the blue brake output wire near the brake controller leaving enough room to reconnect it and then apply the manual slide. Using a circuit tester like the Quickee Tester, part # 3808, you should get output to the controller side of the wire you severed.What weight do you need trailer brakes?
Every trailer or semitrailer of a gross weight of over 3,000 lbs. must be equipped with brakes when operated upon a highway. Such brakes must be so designed and connected that in case of an accidental breakaway of a towed vehicle over 5,000 lbs., the brakes are automatically applied.How do you troubleshoot a trailer brake controller?
Hold a 12-volt test light to the trailer connector wire port at the back of the trailer brake controller. After 12-volts of power have been confirmed at the controller, hold the test light to the wire connection port on the trailer connector at the rear of the vehicle.How do you check trailer brakes without a trailer?
How to Check a Brake Controller Without a Trailer- Press down on the brake pedal while watching the brake controller.
- Check the fuse to the controller if the display does not light up.
- Go to the trailer connector on the back of the tow vehicle with your multimeter.
