How is the total resistance of a circuit calculated?
Mia Horton news
If you know the total current and the voltageacross the whole circuit, you can find the totalresistance using Ohm's Law: R = V / I. For example, a parallelcircuit has a voltage of 9 volts and total current of3 amps. The total resistance RT = 9 volts / 3amps = 3 Ω.
.
Regarding this, how do you calculate circuit requirements?
To calculate series resistance, which you shoulduse when connecting the "out" side of one resistor to the "in" sideof another in a circuit, use the formula Req = R1 +R2 + . Rn. In this formula, n equals the number of resistors in aseries.
Also, what is a series circuit? A series circuit is a circuit in whichresistors are arranged in a chain, so the current has only one pathto take. The current is the same through eachresistor.
Also to know, how do you calculate the resistance of a wire?
To calculate the resistance R of a wire, we need to knowthree things:
- its length – the longer the wire, the greater itsresistance.
- its cross-sectional area A – the greater the area, theless its resistance.
- the resistivity of the material r – the greater theresistivity, the greater its resistance.
What is the formula of power?
Ohm's law equation (formula): V = I × R andthe power law equation (formula): P = I × V. P= power, I or J = Latin: influare, international ampere, orintensity and R = resistance. V = voltage, electric potentialdifference Δ V or E = electromotive force (emf =voltage).
Related Question Answers
What is Ohm's law formula?
Ohm's Law FormulaVoltage= Current× Resistance. V= I×R. V=voltage, I= current and R= resistance. The SI unit of resistance isohms and is denoted by Ω This law is one of themost basic laws of electricity.What is Ohm's law used for?
Ohm's Law is a formula used to calculatethe relationship between voltage, current and resistance in anelectrical circuit. To students of electronics, Ohm's Law (E= IR) is as fundamentally important as Einstein's Relativityequation (E = mc²) is to physicists.Is voltage the same in parallel?
In a series circuit, the sum of the voltagesconsumed by each individual resistance is equal to thesource voltage. Components connected in parallel areconnected along multiple paths so that the current can split up;the same voltage is applied to each component.Why is voltage same in parallel circuit?
In parallel circuits, the electric potentialdifference across each resistor (ΔV) is the same. In aparallel circuit, the voltage drops across each ofthe branches is the same as the voltage gain in thebattery. Thus, the voltage drop is the same acrosseach of these resistors.What is Ohm's law in electricity?
Ohm's law states that the current through aconductor between two points is directly proportional to thevoltage across the two points. More specifically, Ohm's lawstates that the R in this relation is constant, independent of thecurrent.What is resistance measured in?
Resistance is the measure of difficultyelectrons have in flowing through a particular object. It issimilar to the friction an object experiences when moving or beingmoved across a surface. Resistance is measured inohms; 1 ohm is equal to 1 volt of electrical difference per 1ampere of current (1 volt/1 amp).What is conductivity formula?
As a reciprocal quantity, conductivity is ameasure of how easy a material permits the flow of current. Thisare related by: Resistivity = 1 / conductivity. Theequation is: ρ = 1 / σWhat is resistance of a wire?
Resistance wire is wire intended formaking electrical resistors (which are used to control the amountof current in a circuit). When resistance wire is used forheating elements (in electric heaters, toasters, and the like),high resistivity and oxidation resistance isimportant.What is an easy definition for resistance?
Resistance is the opposition that a substanceoffers to the flow of electric current. When an electric current ofone ampere passes through a component across which a potentialdifference (voltage) of one volt exists, then the resistanceof that component is one ohm.What is the SI unit of resistivity?
The SI unit of electrical resistivity isthe ohm⋅metre (Ω⋅m). It is commonly represented bythe Greek letter ρ, rho. Although the SI resistivityunit, the ohms metre is generally used, sometimes figures willbe seen described in terms of ohms centimetres,Ω⋅cm.What factors affect resistivity?
The resistivity of a material is theresistance of a wire of that material of unit length andunit cross-sectional area. The unit for resistivity is theohm-metre. The resistivity of a material depends on itsnature and the temperature of the conductor, but not on its shapeand size.What is meant by 1 ampere?
An ampere is a unit of measure of the rate ofelectron flow or current in an electrical conductor. Oneampere of current represents one coulomb of electricalcharge (6.24 x 1018 charge carriers) moving past aspecific point in one second.What are the 3 forms of Ohm's law?
electrical circuit, the current passing through mostmaterials is directly proportional to the potential differenceapplied across them. Fig. 3-4: A circle diagram to help inmemorizing the Ohm's Law formulas V = IR, I = V/R, and R=V/I. The V is always at the top.How do I calculate amps?
Divide the watts of a given electrical item by the totalnumber of volts available from the electric outlet to calculateamperage draw. The amount of current flowing through the wireis measured in amperes, or amps. The equivalent of availableelectricity at the power source is voltage, or volts.What is the formula for total current?

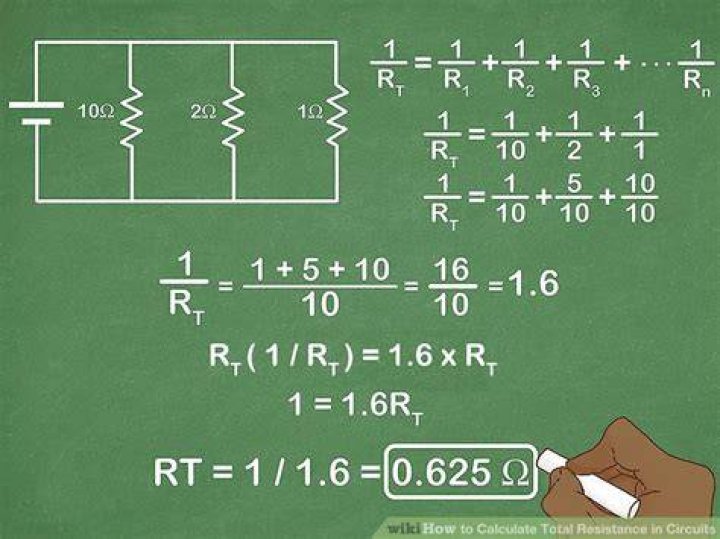

The sum of the currents through each path is equal tothe total current that flows from the source. You can findtotal resistance in a Parallel circuit with the followingformula: 1/Rt = 1/R1 + 1/R2 + 1/R3 + Rt = R(t)otal.How do I convert ohms to amps?
- Amps calculations. The current I in amps (A) is equal to thevoltage V in volts (V) divided by the resistance R in ohms(Ω):
- Volts calculations. The voltage V in volts (V) is equal to thecurrent I in amps (A) times the resistance R in ohms (Ω):
- Watts calculation.
