White Arc. The white arc on airspeed indicators depicts the normal flap operating range. Inside of the white arc, full flaps can be used. The top of the white arc indicates the highest speed at which flaps can be extended during flight, and operating at speeds outside of the white arc with flaps down can be unsafe..
Simply so, what is airspeed indicator?
Airspeed indicator, instrument that measures the speed of an aircraft relative to the surrounding air, using the differential between the pressure of still air (static pressure) and that of moving air compressed by the craft's forward motion (ram pressure); as speed increases, the difference between these pressures
Furthermore, why is airspeed indicator important? The airspeed indicator is one of the basic aircraft instruments and is of importance to pilots because adherence to safe operating speeds is imperative. The airspeed indicator works by comparing dynamic pressure—ram air pressure—and static pressure.
Hereof, what does a turn and bank indicator do?
turn and bank indicator, aircraft instrument containing one indicator to show turning, or rotation about the vertical axis, and another to show banking, or rotation about the longitudinal axis. The two indicators are essentially separate instruments, but they are customarily placed together.
What are the different types of airspeed?
Here are the 4 types of airspeed, and what each means for your flying
- 1) Indicated Airspeed (IAS) This one's pretty simple.
- 2) True Airspeed (TAS) True airspeed is the speed of your aircraft relative to the air it's flying through.
- 3) Groundspeed (GS)
- 4) Calibrated Airspeed (CAS)
Related Question Answers
How does the heading indicator work?
The heading indicator works using a gyroscope, tied by an erection mechanism to the aircraft yawing plane, i. e. the plane defined by the longitudinal and the transverse axis of the aircraft.What are speed bugs?
An air speed indicator (ASI) is a device for measuring the forward speed of the aircraft. The ASI uses the aircraft pitot-static system to compare pitot and static pressure and thus determine forward speed. ASIs may be fitted with movable "bugs" on which critical take-off and landing speeds can be set.Who invented the airspeed indicator?
Frank Short
How does an attitude indicator work?
How Does your Attitude Gyro work? The Attitude Indicator shows rotation about both the longitudinal axis to indicate the degree of bank, and about the lateral axis to indicate pitch (nose up, level or nose down). Once powered up, the indicator is maintain in a fixed position no matter what the aircraft attitude may be.What do the colors on an airspeed indicator mean?

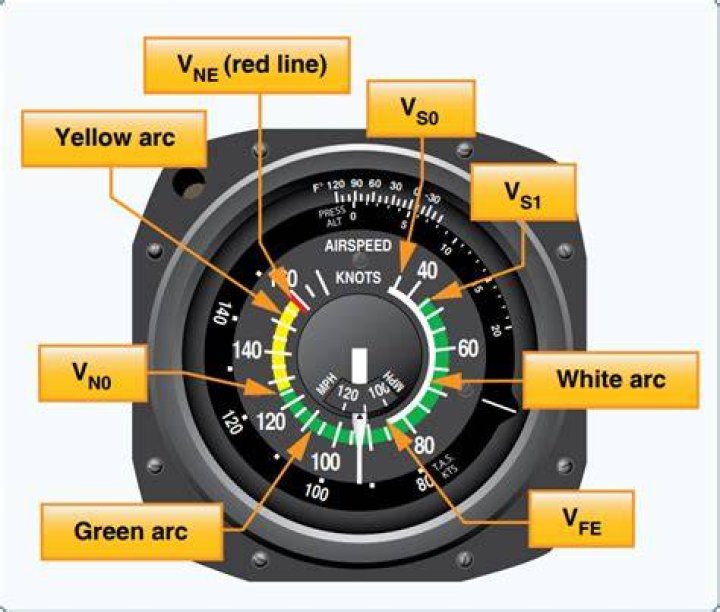

The airspeed indicator is color-coded to help the pilot immediately recognize the important airspeeds and ranges of airspeed. The color codes are: White Arc, Green Arc, Yellow Arc, Red Radial Line, and Blue Radial Line. White arc – The white arc is the flap operating speed. The bottom of this white arc is VS0.How do you measure airspeed?
In aviation speed is most often expressed in knots (kt). One knot is one nautical mile per hour. In an aircraft the speed is "measured" with a pitot tube. Together with the static pressure one can determine not the speed of the aircraft, but the speed of the air flowing around the aircraft, the airspeed.What causes compressibility error in an airspeed indicator?
Density errors affect instruments metering airspeed and altitude. This type of error is caused by variations of pressure and temperature in the atmosphere. A compressibility error can arise because the impact pressure will cause the air to compress in the pitot tube.What is absolute altitude?
Absolute Altitude is height above ground level (AGL). It is primarily used in aircraft performance calculations and in high-altitude flight. • Density Altitude is formally defined as “pressure altitude corrected for nonstandard temperature variations.”What is Blue Line Multi engine?
In many light twins, which are typically used in multiengine flight training, an engine failure can reduce climb performance 80 percent or more. The first is the single-engine best rate of climb speed-VYSE. It's often called "blue line" because this speed is marked on the airspeed indicator with a blue radial line.What is blue line speed?
blue-line speed. For multiengine aircraft, the best climb speed consequent to failure of one of the engines. It is marked normally in blue on the ASI (air-speed indicator).How does an airspeed sensor work?
The way this airspeed sensor works is that the top tube is “active” (measures air pressure from the pitot tube that is open at the front and has air driven into it by airspeed) and the bottom one is “static” (measures ambient air pressure from tube with intakes on the side).What pressure does a pitot tube measure?
Basically, a pitot tube is used in wind tunnel experiments and on airplanes to measure flow speed. It's a slender tube that has two holes on it. The front hole is placed in the airstream to measure what's called the stagnation pressure. The side hole measures the static pressure.How does an altimeter work?
Conventional aircraft altimeters work by measuring the atmospheric pressure at the airplane's flight altitude and comparing it to a preset pressure value. When the static pressure increases or decreases, mechanical connections trigger the altimeter needle to show a corresponding altitude in feet.How do I turn on the indicators in my car?
First, put your turn signal on in the direction you wish to go. To move into the right lane, push your turn signal up to let others know you wish to move to the right. To move into the left lane, push your turn signal lever down to indicate that you wish to move into the left lane.What is the six basic instrument in aircraft?
This basic six set, also known as a "six pack", was also adopted by commercial aviation. After the Second World War the arrangement was changed to: (top row) airspeed, artificial horizon, altimeter, (bottom row) turn and bank indicator, heading indicator, vertical speed.What is a slip skid indicator?
The Slip/Skid Indicator (sometimes called turn-and-bank indicator) moves left and right relative to the roll pointer in proportion to lateral acceleration and helps the pilot correct for any deviations in a turn. In a level flight, the indicator is centered.What does the turn coordinator show?
Turn Coordinators display the rate of turn and roll information, as well as quality and coordination of the turn. Turn & slip indicators only show rate of turn. Developed from the turn and bank indicator. Inclinometer is located below the instrument used to determine quality of a turn (angle of bank and the rate of yawWhat instrument does the turn coordinator back up?
The turn coordinator is one of three gyro-driven instruments in the panel of your training airplane. The turn coordinator's gyro is mounted on a 30-degree angle upward from the longitudinal axis of the aircraft. The turn coordinator is essentially two instruments in one.How does the vertical speed indicator work?
The vertical speed indicator (VSI) is one of the six basic flight instruments in an airplane. The VSI tells the pilot whether the airplane is climbing, descending, or level during the flight. The vertical speed indicator gives rate information in feet per minute (fpm) for the climb or descent.
