What is reset recovery time?

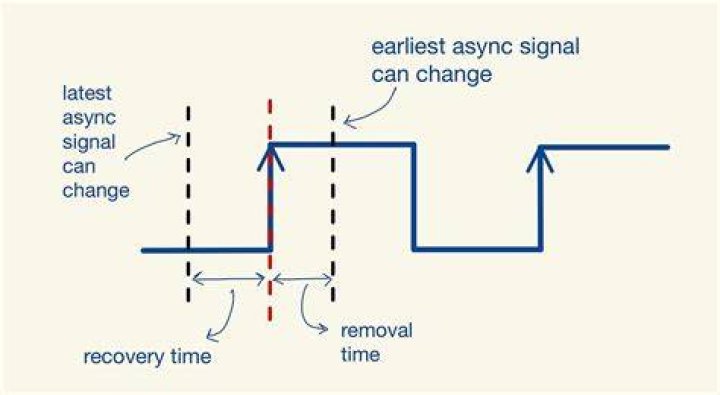

Reset Recovery Time - Minimum time period before active clock edge, before which Reset is released. This is similar to Setup time requirement in FF. Basically one should not release Reset signal in this time frame. Reset Removal Time - Minimum time period after active clock edge where Reset signal can be released.

Hereof, what is an asynchronous reset?

Reset may be either synchronous or asynchronous relative to the clock signal. Asynchronous reset does not require an active clock to bring flip-flops to a known state, has a lower latency than a synchronous reset and can exploit special flip-flop input pins that do not affect data path timing.

Likewise, what is reset synchronizer? The circuit that manipulates the asynchronous reset to have asynchronous assertion and synchronous deassertion is referred as reset synchronizer. Definition of reset synchronizer: A reset synchronizer synchronizes the deassertion of reset with respect to the clock domain.

Regarding this, what is recovery and removal time in VLSI?

These specify the requirement of these signals with respect to clock. Recovery Time is the minimum required time to the next active clock edge the after the reset (or the signal under analysis) is released. Similarly, Removal Time is the minimum required time after the clock edge after which reset can be released.

What is reset domain crossing?

Reset domain crossing (RDC) is a scenario where in sequential logic, where the source & destination flops operate on different resets, the destination flop is susceptible to corruption when the source reset is asserted but the destination reset is not and hence resulting in data transition at the destination flop.

What is difference between synchronous and asynchronous reset?

What is JK flip flop?

JK Flip Flop. The flip flop is a basic building block of sequential logic circuits. It is a circuit that has two stable states and can store one bit of state information. The basic JK Flip Flop has J,K inputs and a clock input and outputs Q and Q (the inverse of Q).

What does a flip flop do?

A flip-flop is a device which stores a single bit (binary digit) of data; one of its two states represents a "one" and the other represents a "zero". Such data storage can be used for storage of state, and such a circuit is described as sequential logic in electronics.

What is the difference between synchronous and asynchronous?

The major difference between them lies in their transmission methods, i.e. Synchronous transmissions are synchronized by an external clock; whereas Asynchronous transmissions are synchronized by special signals along the transmission medium.

What is asynchronous counter?

Asynchronous counters are those whose output is free from the clock signal. Because the flip flops in asynchronous counters are supplied with different clock signals, there may be delay in producing output. The required number of logic gates to design asynchronous counters is very less. So they are simple in design.

What is a synchronous and asynchronous counter?

In an asynchronous counter, an external event is used to directly SET or CLEAR a flip-flop when it occurs. In a synchronous counter however, the external event is used to produce a pulse that is synchronised with the internal clock. An example of an asynchronous counter is a ripple counter.

What is preset and clear?

Preset and clear inputs are called Asynchronous inputs as they act on the flip flop independent of the clock. The preset input is used to set the Flip flop to 1. The clear input is used to clear or reset the flip flop to 0.

What is twisted ring counter?

Ring counter. A twisted ring counter, also called switch-tail ring counter, walking ring counter, Johnson counter, or Möbius counter, connects the complement of the output of the last shift register to the input of the first register and circulates a stream of ones followed by zeros around the ring.

What is a recovery check?

While many checks pass through your business or organization without any issues, you will occasionally encounter a bad check. Simply put, bad check recovery is a process through which a business or organization goes to recover the funds initially promised on the bad check.

What is setup time and hold time?

Setup and Hold TIme. The setup time is the interval before the clock where the data must be held stable. The hold time is the interval after the clock where the data must be held stable. Hold time can be negative, which means the data can change slightly before the clock edge and still be properly captured.

What is meant by clock domain crossing?

In digital electronic design a clock domain crossing (CDC), or simply clock crossing, is the traversal of a signal in a synchronous digital circuit from one clock domain into another. If a signal does not assert long enough and is not registered, it may appear asynchronous on the incoming clock boundary.

What is reset in digital electronics?

In a computer or data transmission system, a reset clears any pending errors or events and brings a system to normal condition or an initial state, usually in a controlled manner. Most computers have a reset line that brings the device into the startup state and is active for a short time after powering on.

How are clocks synchronized?

HOW DOES IT WORK? In a synchronized clock system, the master clock receives time from either an NTP server or GPS receiver, or its internal clock can be utilized as a time source. When the master clock has received the correct time from either source, the time is then distributed to all slave clocks in the system.

What is reset in VLSI?

Reset is a signal that is used to initialize the hardware, as the design does not have a way to do self initialization. That means, reset forces the design to a known state. In simulation, usually it is activated at the beginning, but in real hardware, reset is usually activated to power up the circuits.

What is synchronization VLSI?

The most common approach to synchronization is to distribute a clock signal to all modules of the system. With the scaling of feature-sizes in VLSI design, clock speeds are increasing rapidly, but increases in complexity tend to prevent significant reductions in chip size.

How do you handle Metastability?

The most common way to tolerate metastability is to add one or more successive synchronizing flip-flops to the synchronizer. This approach allows for an entire clock period (except for the setup time of the second flip-flop) for metastable events in the first synchronizing flip-flop to resolve themselves.
