What is the weight of steel?
Mia Kelly general
8 mm– 0.3948 kg/metre. 10mm – 0.6169 Kg/metre. 12mm – 0.8883 Kg/metre. 16mm– 1.5792 Kg/metre.
.
In this manner, what is the unit weight of steel?
Steel weighs 7850 kilograms per cubic meter or 489.8 pounds per cubic foot. Stainless steel weighs between 7480 and 8000 kilograms per cubic meter, depending on its exact composition. A 0.25-inch-thick steel plate weighs 10.2 pounds per square foot. Steel is an alloy of iron and carbon.
Also Know, what is the weight of steel per square foot? WEIGHT: STEEL PLATE BY THICKNESS
| PLATE THICKNESS (IN INCHES) | WEIGHT: POUNDS PER SQUARE FOOT | WEIGHT: POUNDS PER SQUARE INCH |
|---|---|---|
| 5/16 | 12.75 | 0.08854 |
| 3/8 | 15.32 | 0.10639 |
| 7/16 | 17.85 | 0.1239 |
| 1/2 | 20.42 | 0.1418 |
Similarly, how do you calculate the weight of steel?
- Weight of STEEL BAR.
- Weight = Density x Volume {Volume = Area x Length }
- Density of Steel = 7850 Kg/m3.
- Area of Steel = pi x d^2 / 4.
- = 0.785 d^2.
- Taking, Bar Length =1000 mm = 1 m.
- Therefore, we can calculate.
- Weight of Steel Bar = {7850/(1000x1000x1000)} x (3.14 x d^2 /4)x1000.
How much does mild steel weigh?
Steel Plate Thickness and Weight - Imperial Units
| Nominal Size Thickness (inches) | Weight (lb/ft2) |
|---|---|
| 5/16 | 12.75 |
| 3/8 | 15.30 |
| 7/16 | 17.85 |
| 1/2 | 20.40 |
Related Question Answers
What is the unit weight of brick?
Unit Weight Of Building Materials
| Material | Unit Weight |
|---|---|
| Water | 1000 Kg/ m3 |
| Bricks (broken) | 1420 Kg/ m3 |
| Bricks(common) | 1600 Kg/ m3 |
| Cement(ordinary) | 1440 Kg/ m3 |
How can I calculate weight?
The weight of an object is defined as the force of gravity on the object and may be calculated as the mass times the acceleration of gravity, w = mg. Since the weight is a force, its SI unit is the newton.What is the unit weight of water?
The specific weight (also known as the unit weight) is the weight per unit volume of a material. The symbol of specific weight is γ (the Greek letter Gamma). A commonly used value is the specific weight of water on Earth at 4°C, which is 9.807 kN/m3 or 62.43 lbf/ft3.How long is a ton of steel?
134 pieces of 10mm reinforcement bar will give 1 ton. 93 pieces of 12mm reinforcement bar will give 1 ton. 52 pieces of 16mm reinforcement bar will give 1 ton. 34 pieces of 20mm reinforcement bar will give 1 ton.What is weight of 12mm steel rod?

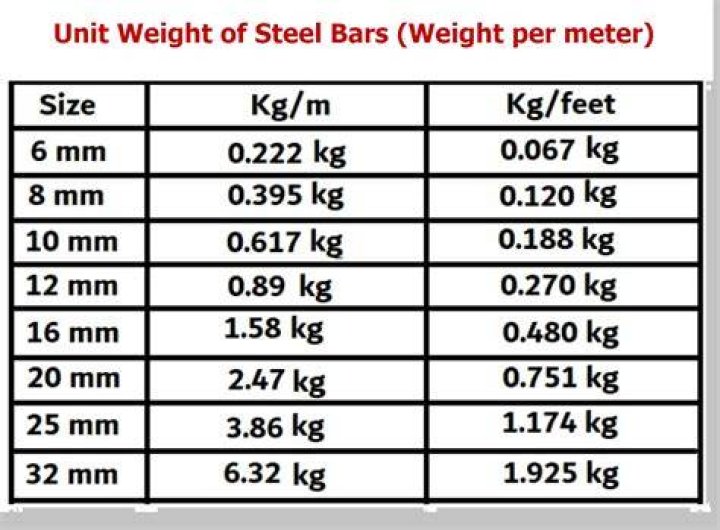

Standard weight of 1m steel bars:
| 6mm | 0.22kg |
|---|---|
| 10mm | 0.62kg |
| 12mm | 0.88kg |
| 16mm | 1.58kg |
| 20mm | 2.47kg |
What is the unit weight of concrete?
A normal weight concrete weighs 2400 kg per cubic meter or 145 lbs per cubic foot (3915 lbs per cubic yard). The unit weight of concrete (density) varies depending on the amount and density of the aggregate, the amount of entrained air (and entrapped air), and the water and cement content.What is the specific weight of steel?
specific weight metal and alloy
| metal or alloy | weight (kg/dm3) |
|---|---|
| ordinary steel | 7.8 - 7.9 |
| stainless steel | 7.48 - 8 |
| rolled steel | 7.85 |
| aluminium foil | 2.7 - 2.75 |
How do you measure steel?
Rectangular Steel SurfaceMeasure the length and width, in inches, of the rectangular steel sheet. For example, the length might be 135 inches while the width is 50 inches. Multiply the length by the width to obtain the area of the steel in square inches.What is steel made of?
Carbon steel, composed simply of iron and carbon, accounts for 90% of steel production. Low alloy steel is alloyed with other elements, usually molybdenum, manganese, chromium, or nickel, in amounts of up to 10% by weight to improve the hardenability of thick sections.Are of a circle?
The area of a circle is pi times the radius squared (A = π r²). Learn how to use this formula to find the area of a circle when given the diameter.How do I calculate the weight of a pipe?
Pipe Weight Calculation FormulaThis formula can be used to determine the weight per foot for any size of pipe with any wall thickness: Wt/Ft = 10.69*(OD - Wall Thickness)*Wall Thickness.What is the chemical formula for steel?
Steel is an alloy and has no structural formula.It is composed of Iron (Fe) with small amounts of carbon (C). Unalloyed steel contains from 0.002% to 2.1% carbon.How strong is steel?
Steel is strong and less likely to warp, deform or bend under weight, force or heat. Nevertheless the strength of steel's tradeoff is that steel is much heavier/much denser than aluminum. Steel is typically 2.5 times denser than aluminum.How do you calculate the weight of concrete?
The weight of concrete is approximately 150 pounds per cubic foot, or 4,050 pounds per cubic yard. The formula for calculating the weight of concrete is: Length (in feet) x Width (in feet) x Thickness (in inches) /12 x 150 = weight (in pounds).How heavy is lead?
Lead weighs 11.342 gram per cubic centimeter or 11 342 kilogram per cubic meter, i.e. density of lead is equal to 11 342 kg/m³; at 20°C (68°F or 293.15K) at standard atmospheric pressure.What does stainless steel weigh?
Stainless Steel Plates
| Thickness and Size in Inches | Estimated Weight per Sq. Foot in Lbs. |
|---|---|
| 1/4 72 | 11.160 |
| 1/4 84 | 11.160 |
| 1/4 96 | 11.160 |
| 1/4 120 | 11.160 |
