What size conduit do I need for 100 amp sub panel?
Ava Mcdaniel .
Similarly, what size conduit do I need for 100 amp service?
Size requirement for services: 100 amp service #3 copper - 100 amp breaker 1 14" conduit 125 amp service #2 copper - 125 amp breaker 1 14" conduit 200 amp service 2/0 copper - 200 amp breaker 2" conduit 2" conduit is required on all services that the utility connects onto the service mast and on roof penetrating
Beside above, can you run a 100 amp sub panel off a 100 amp main panel? To the best of my understanding, there is no code issue running a 100A subpanel off a 100A main panel, so long as the wire size is correct, and the installation is correct. For a subpanel, you need four wire service (two hots, a neutral, and an equipment ground).
Beside this, what size breaker do I need for a 100 amp subpanel?
You can use the 100 amp panel off a 60 amp breaker if you determine that it is adequate, but I would suggest that in sizing your feeder wires and conduit it would be a good idea to size them to accomodate 100 amps. Your feeder wires are where most of the work for this project will be.
What size conduit do I need for 50 amp service?
So in your case, if you want to install a 50 ampere panel, you'll need at least 8 AWG copper conductors. If you want a 60 ampere panel, you'll need 6 AWG copper conductors.
Related Question Answers
Does a subpanel need a ground rod?
It's not used unless a ground fault occurs, in which case it's only purpose is to provide a path back to the source so that a protective device will trip. (breaker, fuse, etc.) So for your first question: no, it is not against code to install a ground rod at the subpanel. It is actually required by code.Does sub panel wire need to be in conduit?
Re: Subpanel wire runIndividual THHN conductors must be run in conduit--either metallic or non-metallic, flexible or rigid. You could probably use SER instead, as long as it's sheathed and contains four conductors: one for Leg A, Leg B, neutral, and ground.What wire do I use for a 100 amp sub panel?

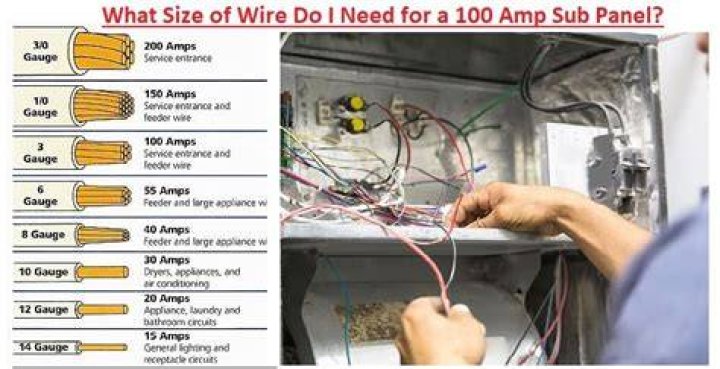

You need a 3-3-3-5 copper SER cable to carry 100 amps (that's three #3 gauge for the two hot wires and the neutral and a #5 gauge for the ground). If you want to use aluminum, you need at least #2 gauge or perhaps #1.How many amps can a 100 amp panel handle?
The amperage is the maximum you can use at any one time. Your main panel may be 100 amps, and everything in the house totals up to 200 amps, but you may only be using 50 amps at any one time!How many circuits can be on a 100 amp panel?
If you come in below 100-amp service load, the circuits can be added to the panel unless you exceed 42 circuits or the total amount of circuits allowed per the manufacturers specifications of the panel.Is 125 amp service enough?
For a small cabin, 125A is probably fine for a small cabin with a "normal" amount of electric consumption. - You will not have enough for a normal tankless water heater. Usually a 200A service is minimum required, but you may need more if you have AC, electric heat, etc.What size ground do I need for a 100 amp service?
For a circuit protected by a 100 A breaker, the minimum ground wire size is #8 copper or #6 aluminum. Jason, A separate building always requires a grounding electrode system in addition to the equipment grounding conductor that you mention.Can you feed a 100 amp sub panel with a 60 amp breaker?
Meaning - you can use a whatever amp panel with a 60 amp feed, if you size the run for 60 and fuse it for 60 that's all you'll be able to use even if you have 45 breakers on the other end. You can't go back and put a 100amp fuse on an 60 amp run later, so it's up to you if you want better wire installed now.Can you run a 100 amp subpanel?
Installing a Subpanel and Choosing CableYou must provide from 3 to 4 feet of clearance on all sides of the panel depending on the voltage to ground. If you're installing a 100-amp panel, you need 4 AWG copper or 2 AWG aluminum three-conductor cable.How do you size a subpanel?
Subpanel Coverage AreaMeasure the length and width of each room and multiply them together to find the square footage of the room. Add up the square footage of all of the rooms to find the total square footage. Multiply the total square footage by 3 (watts) to complete the calculation.Does a sub panel need a main breaker?
Subpanel main breakerA main breaker on a sub-panel is not necessary because this is in the same building (if you are in a different building then NEC 225.31, 225.32, 225.33 apply). That said, having a main breaker in the sub-panel is also acceptable.Can I use aluminum wire for a sub panel?
Aluminum can be used for main service entrance and sub panels. As Firestarter said, fine for sub panels. Aluminum Cons: Larger conductors for the equivalent ampacity as copper.Can I put a bigger breaker in my panel?
No! The only safe way to increase the circuit's capacity is by replacing the wire with one of adequate gauge. For 20 amps, 12 AWG copper is adequate for up to about 100 feet. If you simply replace the breaker, the wire can overheat and ignite the building from inside the walls.How do you install a sub panel in a garage?
Build Your Garage Sub PanelDig an 18-inch deep trench for the outdoor electrical wire, which you will run from the main panel box to the garage sub panel. Use 1 1/4-inch PVC conduit for a 100-amp sub panel or 1-inch PVC conduit if the sub panel is 50 amps or less. Run the conduit from the garage to the main panel box.What size wire do I need for an 80 amp sub panel?
For these older kilns
| 20 amps | 12 gauge copper |
|---|---|
| 60 amps | 6 gauge copper |
| 70 amps | 4 gauge copper |
| 80 amps | 3 gauge copper |
| 90 amps | 2 gauge copper |
Can 8 gauge wire handle 50 amps?
8 AWG may carry a maximum of 70 Amps in free air, or 50 Amps as part of a 3 conductor cable. David, if that cable is NM (Romex) then it actually cannot carry 50 amps.What size electrical conduit do I need?
Allowable Conduit Fill Capacities
| Size and Type of Conduit | 14 AWG Wire | 10 AWG Wire |
|---|---|---|
| 3/4-inch EMT | 22 | 10 |
| 1-inch EMT | 35 | 16 |
| 1 1/2-inch EMT | 84 | 38 |
| 1/2-inch PVC—Sch 40 | 11 | 5 |
How do you pull wire through conduit?
Pulling Wire With a Fish Tape- Feed the end of the tape, which has a hook on it, into the same end of the conduit that you will pull from.
- Push the tape through the conduit, unwinding from the spool as you go.
- Strip insulation from the end of each wire, using wire strippers.
